S72 Saddle assembly

2001

A patented saddle and seatpost interface designed for minimal weight and precise adjustment.

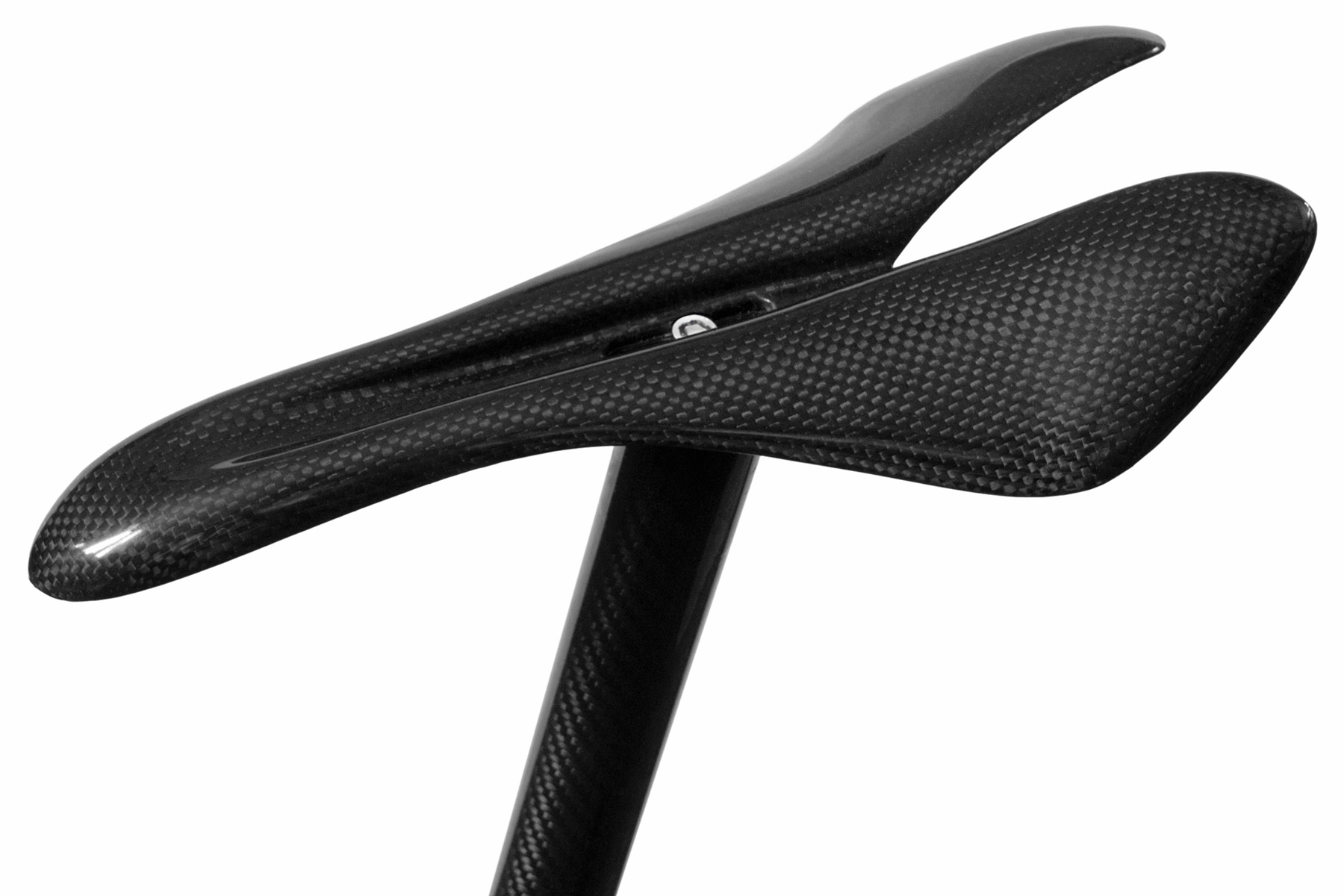

s72-saddles Main project image

Overview

The S72 is a patented saddle and seatpost system developed to simplify the connection between the saddle and the seatpost while reducing weight and improving adjustability.

The design integrates the saddle and support structure into a compact assembly, allowing precise angular and longitudinal adjustment using a single bolt mechanism.

The system was developed and tested over several years, demonstrating reliable performance without compromising rider safety.

Features

Construction

  • Carbon/Kevlar composite saddle and seatpost.
  • Compact integrated structure reducing weight and complexity.

Adjustment

  • Single bolt system for quick and precise setup.
  • Independent angular and longitudinal adjustment.

Engineering

  • CNC machined 7075 aluminum support with titanium interface.
  • Patented design focused on simplicity and reliability.

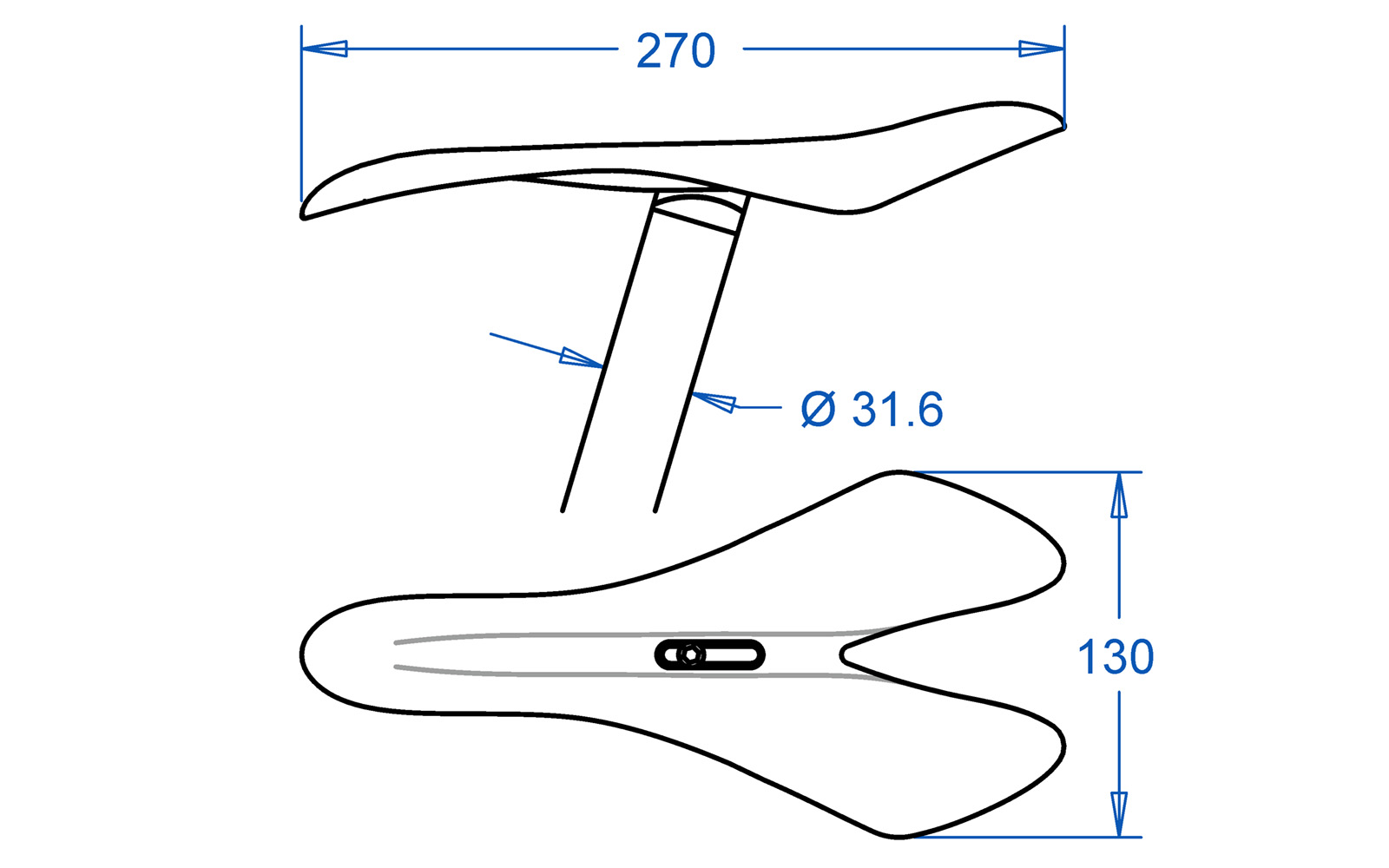

S72 Saddle Geometry

S72 Saddle Project geometry diagram

Gallery

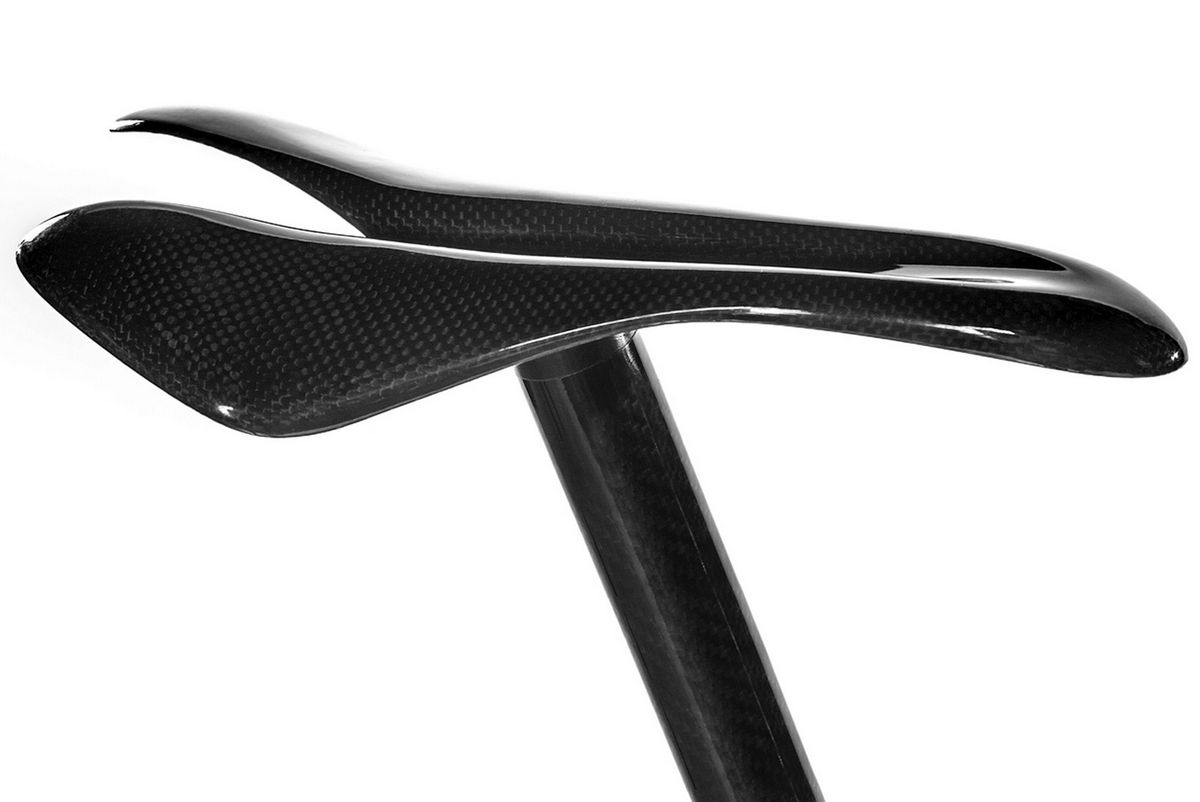

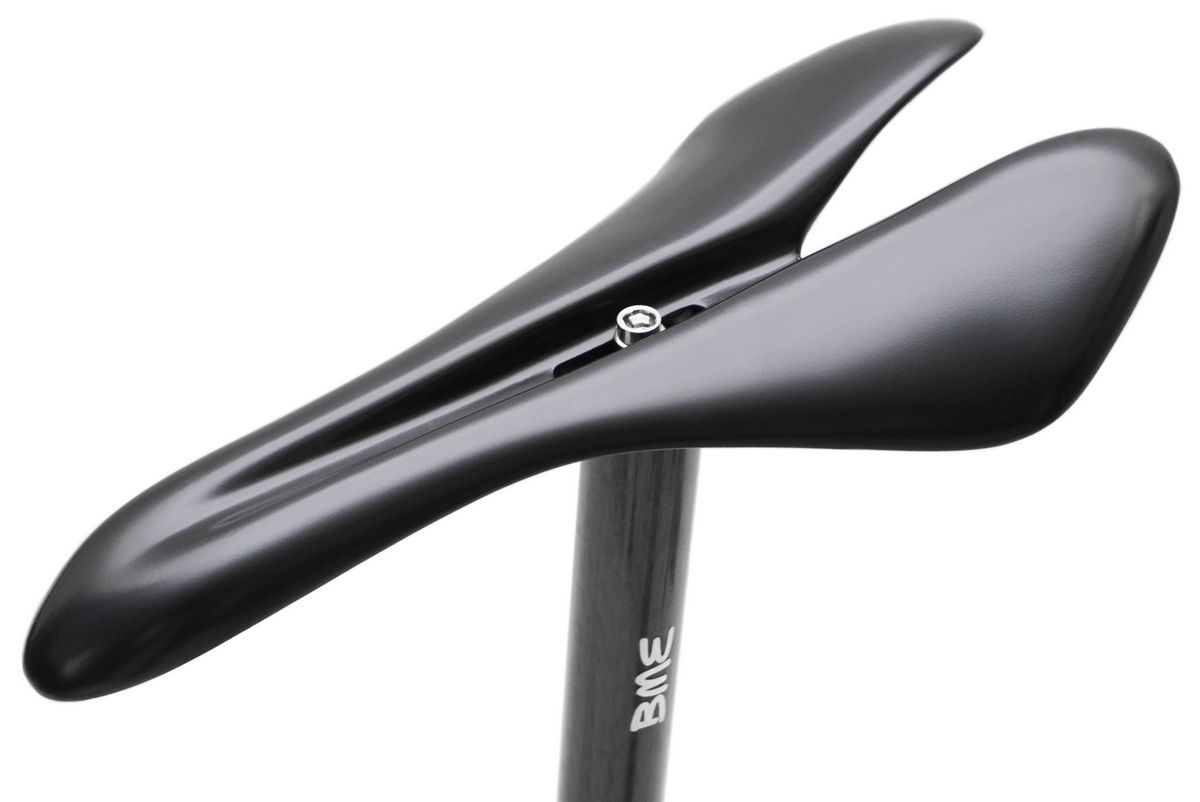

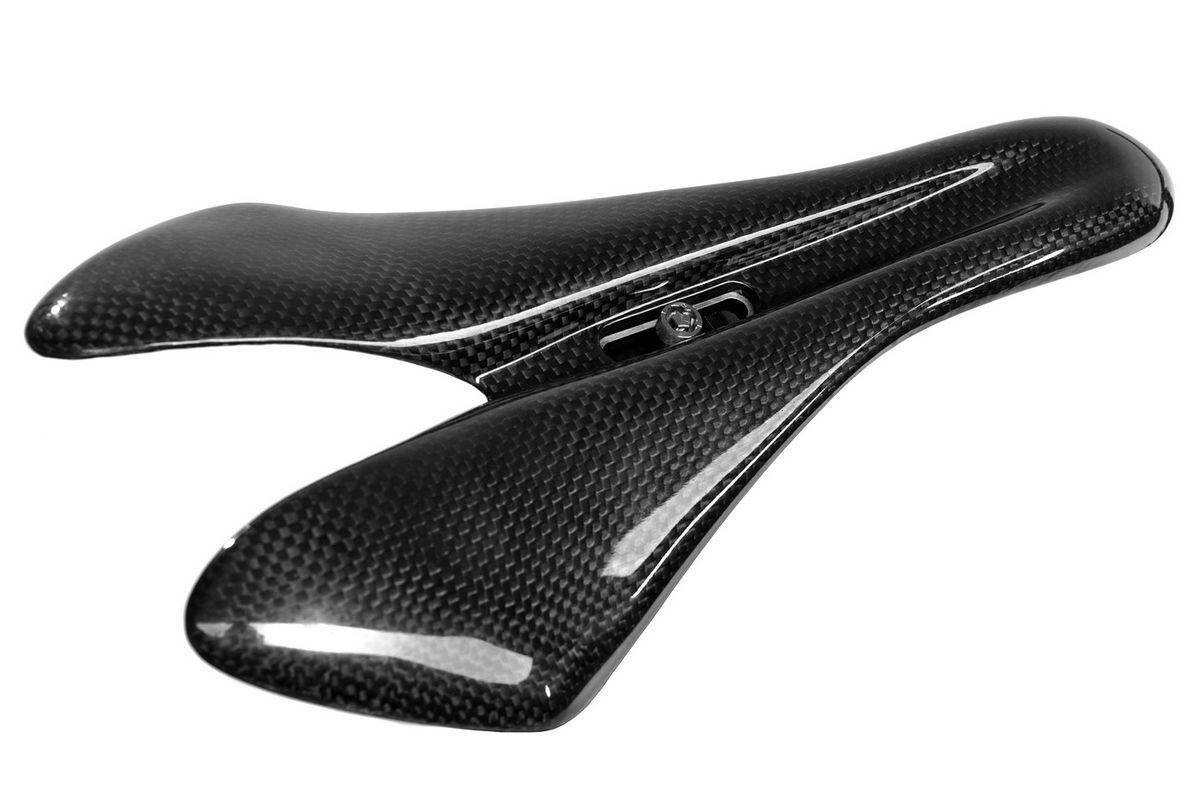

s72-saddle Project detail image 1 s72-saddle Project detail image 2 s72-saddle Project detail image 3 s72-saddle Project detail image 4

Safety and testing

The S72 Saddle Assembly fulfills the safety and quality requirements according to the EN 14764:2006 standard (fatigue test - applied repeated, vertically-downward force of 1000 N for 200 000 test cycles).

The testing was provided by the accredited Engineering Test Institute in Czech Republic.

Availability

The S72 system is no longer in production.
